Fast Real Street VL - Turbo powered Calais

The Project Mission:

 To go faster than before & remain in 100% street trim.

NOTE: Street Trim = street tyres, street quiet exhaust, street registered, street drivable, factory 3EA ECU, spare tyre, street , street, street, street, street.

WSID weighbridge readout

WSID weight bridge



 Statistics:

 Mildly grumpy purr at 850rpm,

Starts to come up on boost by 2400rpm,

 Swings with a roar to 8000rpm with it's freshened up bottom end

Has all the trimmings, e.g. seats, parcel shelf, stereo, factory dash + all Calais options etc.

***

Custom made Shift light by JPS

 with a B&M Pro-ratchet in the custom drop box

***********



NOW completed in 2018

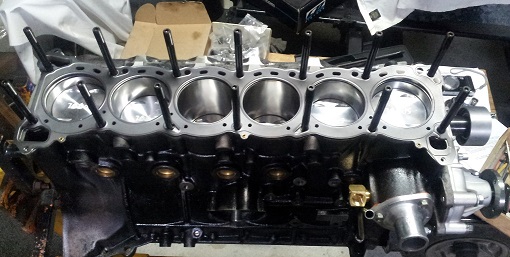

Refreshed Bottom End w/Billet Crank,

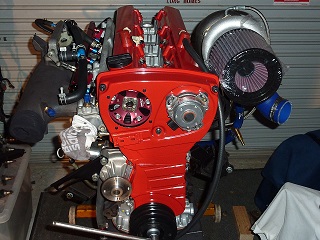

 Twin Cam head,

 Camtech Solid sticks,

Tomei Adjustable Cam gears,

ARP main, heads & cam cap studs

Precision turbo,

RB26 Pump w/billet gears

stock ITB's, Billet Fuel Rail,

RDG Engineering's High Volume baffled oil sump





with all rings, mains, big ends, clearance & installed.

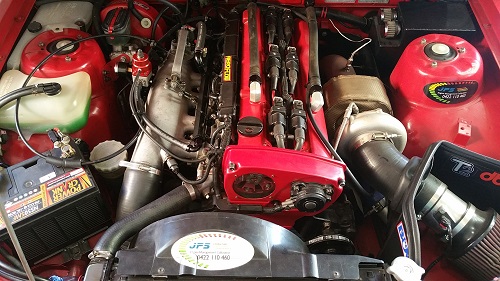

Engine almost completed now, should be back on the track soon.

Still running a Standard ECU but this time it will be an RB20DET version recalibrated to suit the GM LS2 multi-coil setup to match the twin cam.



Parts List

Billet Crank,

CP pistons,

RB26GTR Engine loom modified to suit LS2 Coil packs

plug'n'play in to the VL factory dash harness,

JPS LS2 Coil Pack bracket

 JPS Ported RB26 Cylinder Head &

Cam tunnels honed by Dennis Gatt,

RB20DET ECU, Recalibrated NIStune Type 2, flex sensor & launch control

JPS Mega MAF kit to cope with the extra airflow,

Turbosmart EB2 is controlling waste gate

FMIC Redesigned by JPS to match VL chassis rails

JPS 3.5" Dump & 2" gate to be

 plumbed back in when the full 3.5" is installed.

Traction is still an issue at highways speeds on low boost



23-5-2019 WSID Race for Real on 225's.. 11.1's @ 133.94MPH

4 stage Boost control gave us a nice smooth run.

These old 225's really held on, here it is

that 11 second pass I was aiming for.





Expect to see some bigger MPH figures to come.





,
